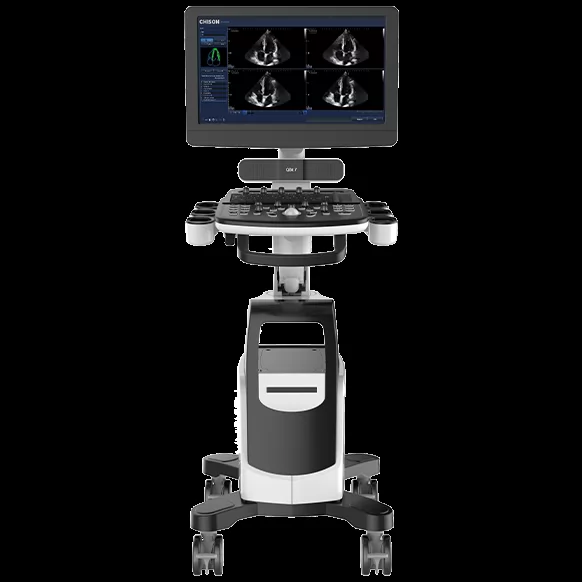

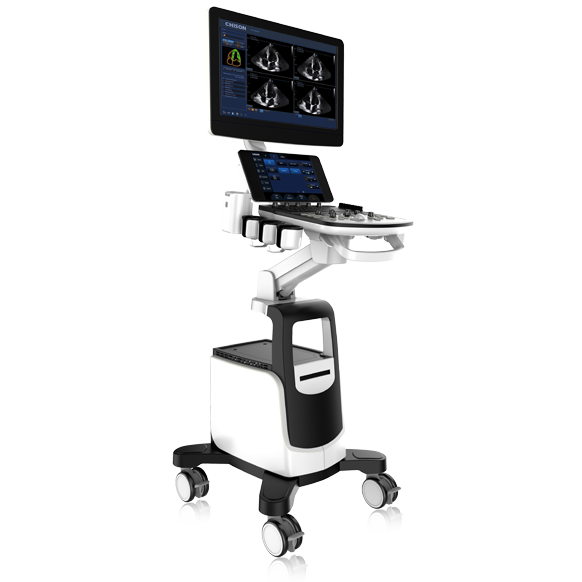

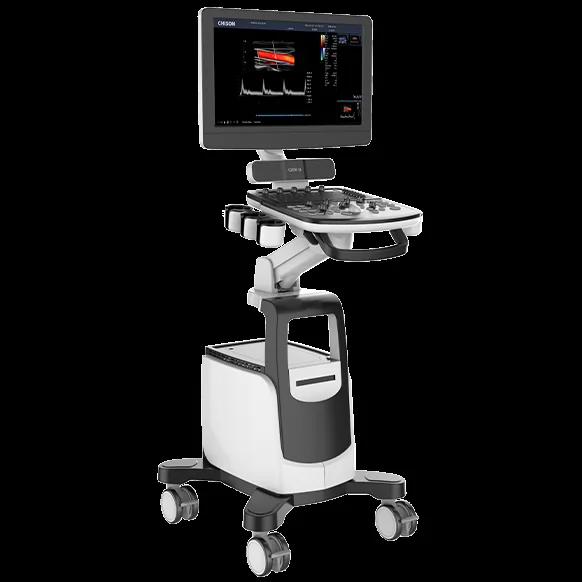

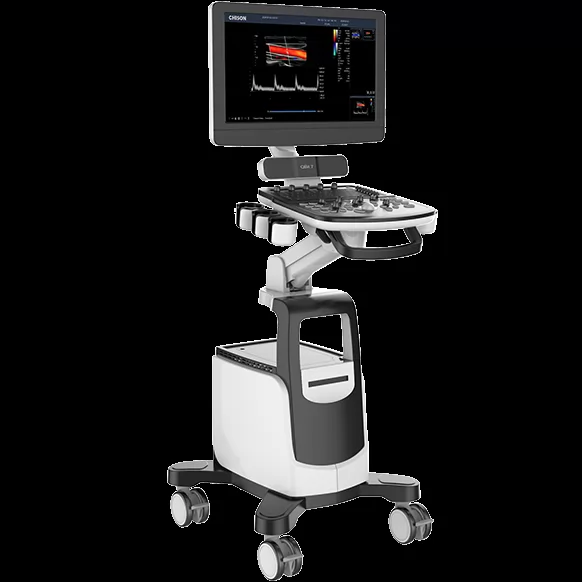

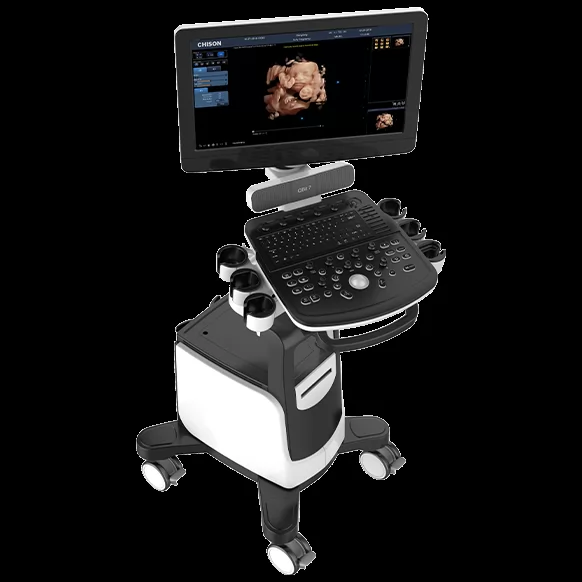

QBit 7

Versatile diagnostic solutions, intelligent workflow and advanced 4D technologies make it a powerful cartbased ultrasound for daily dignosis.

Specifications

Advanced Technologies

Q-beam

●Compared to the traditional dual-beam former on most

ultrasound machines, the QBit uses quad-beam technology for ultrasound signal receiving.

●Doubles the volume of signals received over traditional

methods, increasing image resolution and generating more accurate images.

●Produces higher frame rates, ensuring better diagnostic

conidence and fficiency, especially for moving organs.

FHI

●FHI is an innovative harmonic imaging technology that uses multiple transmission and receiving methods based on the patients' size and weight. This allows the QBit to maintain image resolution when imaging larger patients.

●Traditional Tissue Harmonics and Phased Harmonics

compromise image quality and resolution when penetration is increased.

●Chison's FHI technology greatly improves diagnostic abilties and clinical confdence in larger, dificult-to-image patients.

X-contrast

●The QBit allows one-touch user-adjusted contrast resolution based upon dffrences in tissue density.

●Enhance, Normal, and Suppress settings increase or decrease contrast resolution, based on the tissue type and user preference.

Q-flow

●This adaptive color detection technology can automatically adjust the assessment of color signal and noise according to different tissues.

● Asa result, color sensitivity of lowvelocity flow is signifcantly enhanced.



QBit 7 China Cart Ultrasound

Features

Professional Clinical Applications

● ABD

● OB / GYN

● Vascular

● MSK

● Small Parts

● Urology

● Pediatrics

● Cardiac



Image Processing Technologies

● Speckle Reduction Algorithm (SRA)

● Multiple Compound Imaging (MCI)

● Q-image

● Q-flow

● X-contrast

● Q-beam

● FHI

● Super Needle



Imaging Modes

● B, 2B, 4B, B/M, M

● CFM, B/BC

● PW/CW

● PD, Directional PD

● Duplex, Instant Triplex, Quadplex

● Trapezoidal Imaging

● Curved Panoramic Imaging (optional)

● 2D Steer (optional)

● Chroma B/M/PW/CW

● 4D (optional)

● Virtual HD/Depth View (optional)

● Steer M, Color M, TDI (optional)

● StressEcho (optional)

● Elastography available on 8 kinds of probes(optional)

● ECG (optional)

Demo

  • Brachial Plexus,B Mode

    Brachial Plexus,B Mode

  • Femoral Artery, PW Mode

    Femoral Artery, PW Mode

  • Kindey,PD Mode

    Kindey,PD Mode

  • Aorta Short Axis View,C Mode

    Aorta Short Axis View,C Mode

  • Aorta Valve,PW Mode

    Aorta Valve,PW Mode

  • Apical Four Chambers, Color M Mode

    Apical Four Chambers, Color M Mode

  • Cardiac Two Chambers,CW Mode

    Cardiac Two Chambers,CW Mode

  • MV Regurgitation,BBC Mode

    MV Regurgitation,BBC Mode

  • MV Short Axis View, Free M Mode

    MV Short Axis View, Free M Mode

  • MV Short Axis View,B Mode

    MV Short Axis View,B Mode

  • Papillary Muscle Short Axis,B Mode

    Papillary Muscle Short Axis,B Mode

  • Papillary Muscles, TDI M Mode

    Papillary Muscles, TDI M Mode

  • Early Pregnancy,B Mode

    Early Pregnancy,B Mode

  • Fetal Body,4D Mode

    Fetal Body,4D Mode

  • Fetal Face, Virtual HD

    Fetal Face, Virtual HD

  • Fetal Hand,Depth View

    Fetal Hand,Depth View

  • Fetal Heart,B Mode

    Fetal Heart,B Mode

  • Umbilical Cord, PW Mode

    Umbilical Cord, PW Mode

Transducers

  • D3C20L

    D3C20L

  • D3C60L

    D3C60L

  • D3P64L

    D3P64L

  • D5C20L

    D5C20L

  • D6C12L

    D6C12L

  • D6C15L

    D6C15L

  • D6P64L

    D6P64L

  • D7C10L

    D7C10L

  • D7L40L

    D7L40L

  • D7L40L-REC

    D7L40L-REC

  • D7L60L-60mm

    D7L60L-60mm

  • D12L40L

    D12L40L

  • V4C40L

    V4C40L
